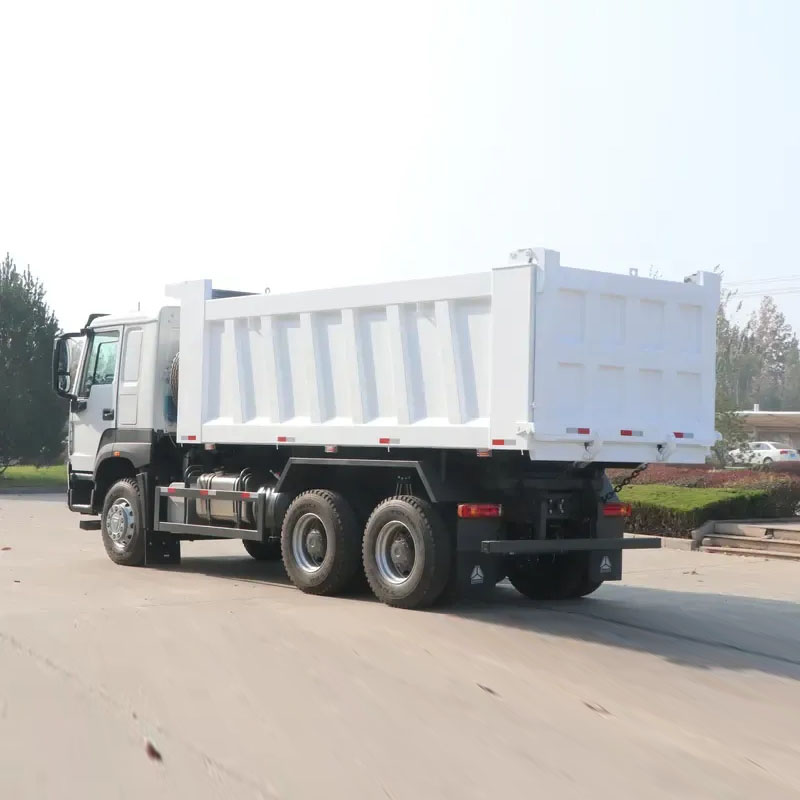

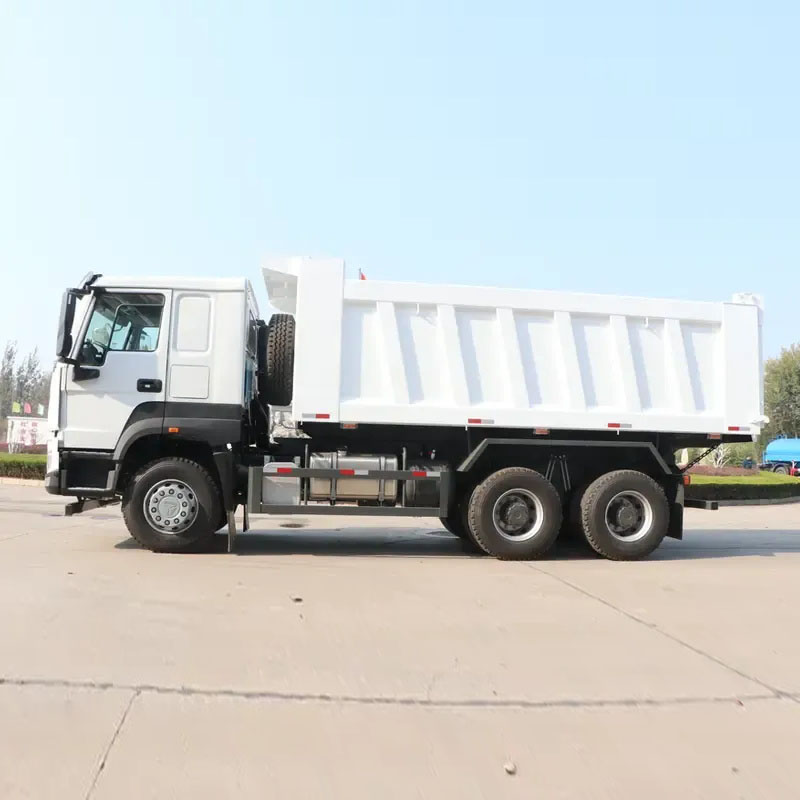

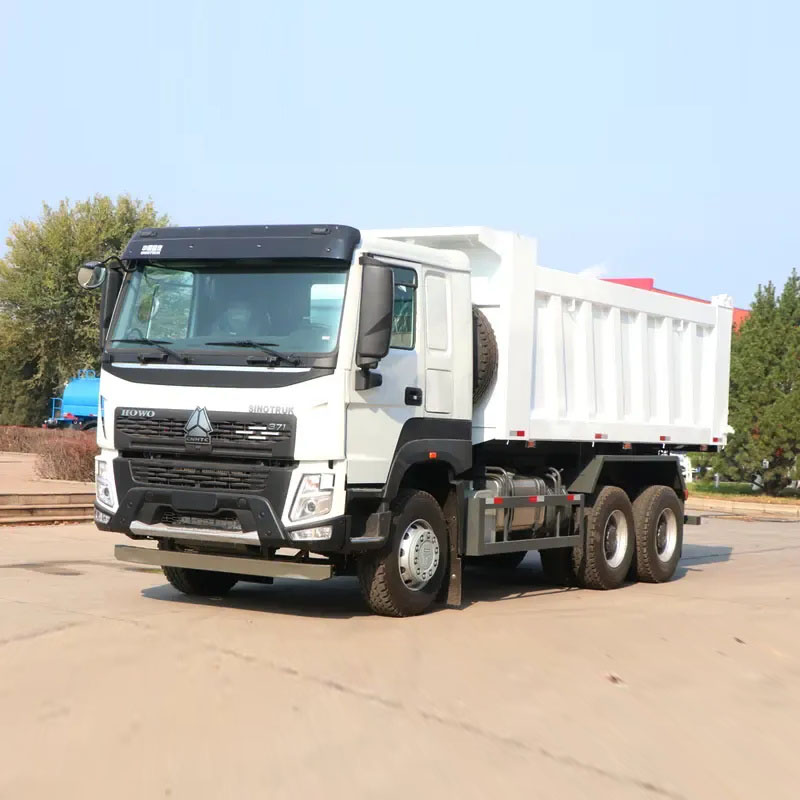

Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck

  • Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck
  • Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck
  • Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck
  • Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck

Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck
Drive Type：6X4
Engine Model：WD615.87
Maximum Horsepower：371
Fuel Tank：300L
Wheelbase：4300+1350
Model：ZZ3257M2941
admin@admin.com
+86 18888888888
Contact Us

Product Display

Sinotruk HOWO 371hp 6x4 drive Tipper/Dump truck
CabinTX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds,
dampedadjustable driver's seat, with heating and ventilating system, exterior sun visor,
safety belts, adjustable steeringwheel, air horn, air conditioner, with transverse stabilizer,
with 4-point support fully floating suspension + shockabsorber.
High steel bumper, Inter-cooler Protection.
EngineDiesel 4-stroke direct injection diesel engine
Engine model: WD615.47, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement:9.726L
TransmissionHW19710, 10F & 2R, with HW50 Direct PTO
Ratio: 14.28,10.62,7.87,5.88, 4.38, 3.27,2.43, 1.80,1.34,1.00,13.91(R1),3.18(R2)
SteeringZF power steering, model ZF8098, hydraulic steering with power assistance
Front AxleVGD95,1*9500 KGS
Steering with double T-cross section beam
Rear AxleMCP16ZG,2x16000 KGS
Pressed axle housing. central single reduction with hub reduction and with differential locks between wheelsand axles
Ratio:5.92
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
ChassisFront suspension:llsemi-elliptic leaf spring. hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
BrakeService brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
ElectricsOperating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank300L
Tire12.00R20, Radial (steel wire) Tires. 10+1 Pics
Cargo body5400x2300x1450mm. 18 Cubic Meters
ColorOptional
Overall Dimension8600*2550*3450 mm
